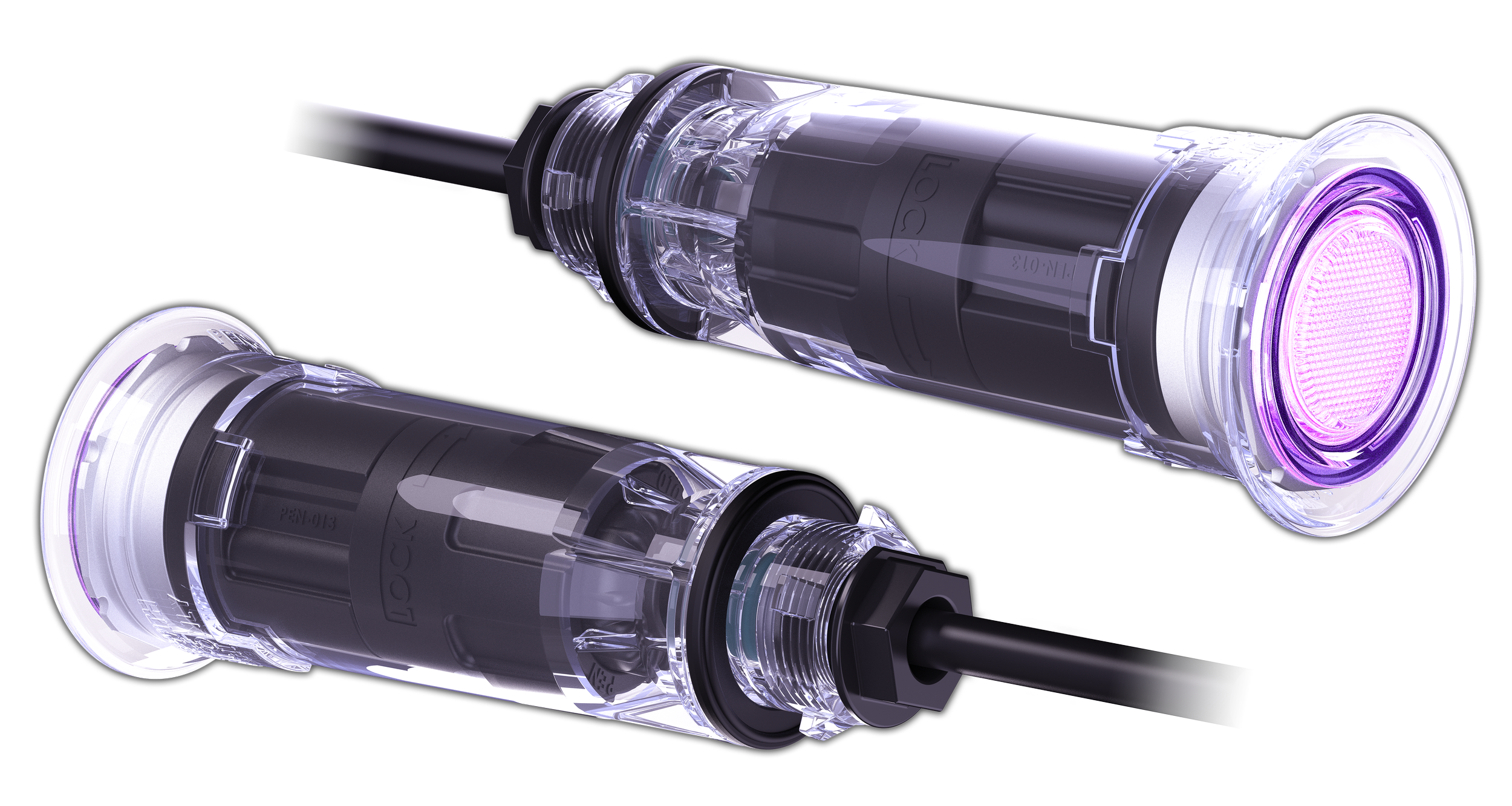

Pentair GloBrite Replacement Pool Light
An innovative pencil light retro-fit solution that’s easy to install, long lasting & serviceable!

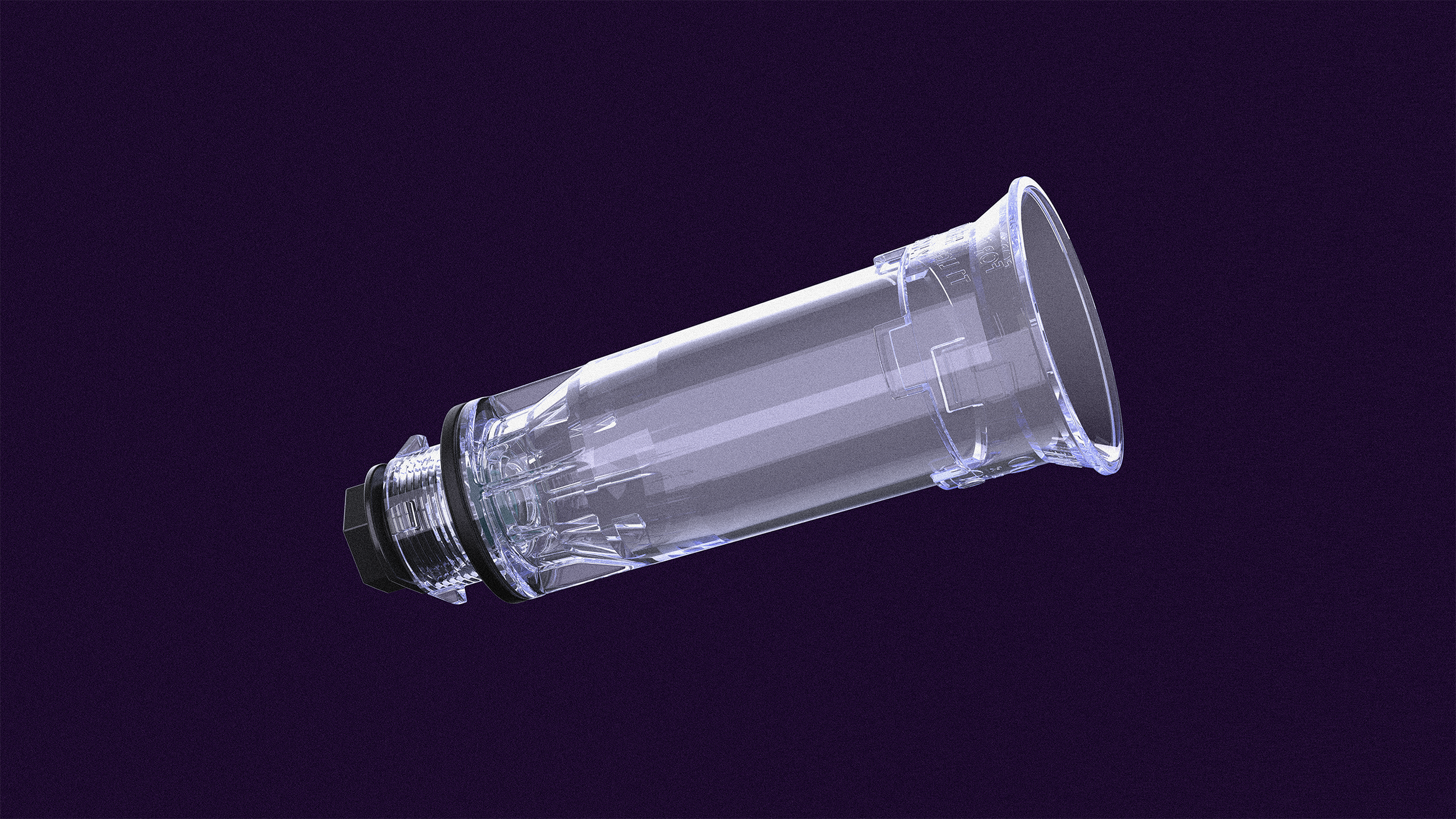

GloBrite Adapter
INSTALLATION
A perfect fit for an existing Pentair GloBrite fitting
A Perfect Fit
The Retro T1G Globrite Replacement Light uses the existing features of a Pentair GloBrite niche/fitting to create a secure, sealed fitment.

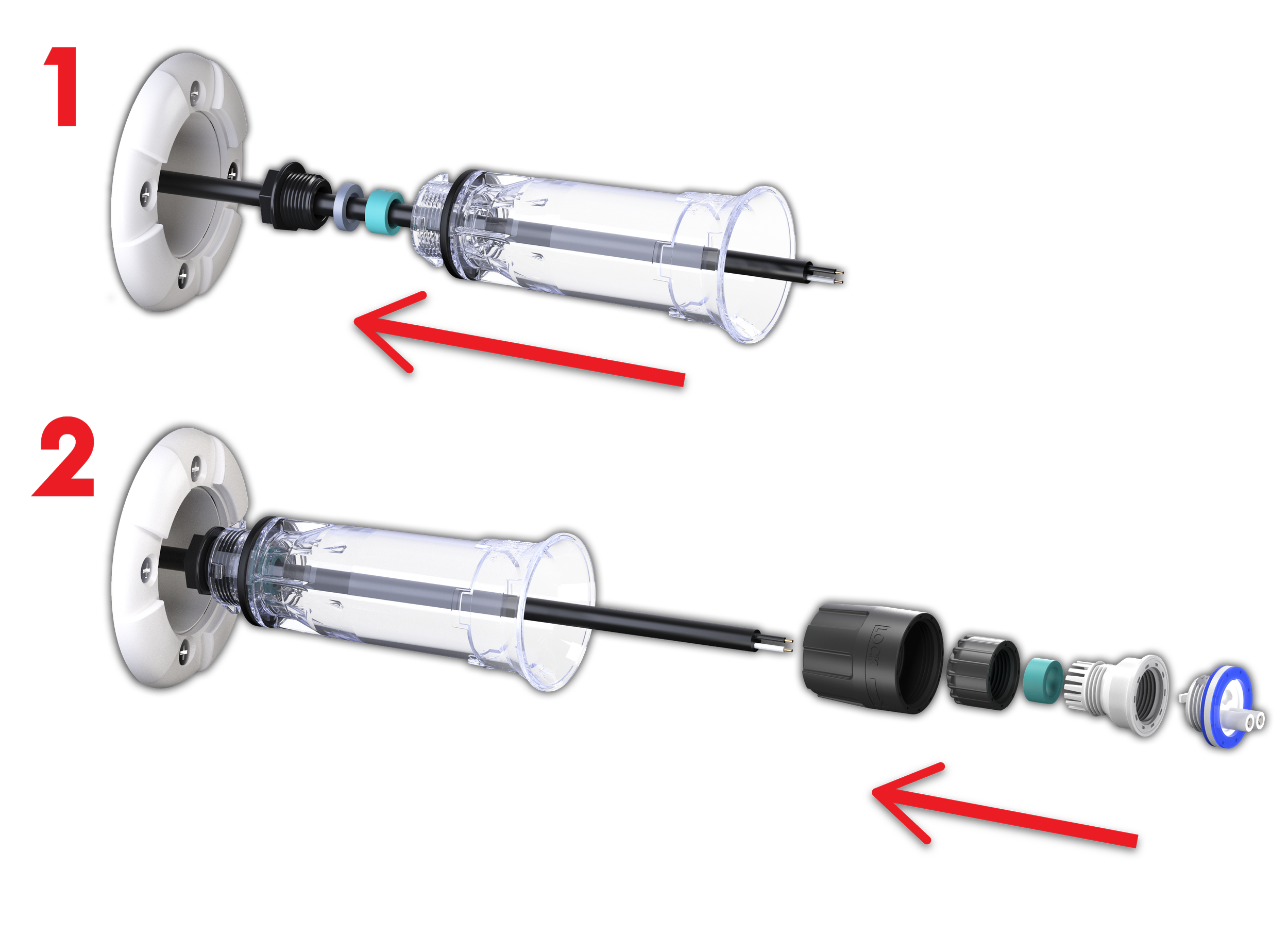

1. The Globrite Adapter, seals, washer and nut are fed onto the existing Globrite or Microbrite cable.
2. The Plug Assembly is assembled onto the end of the cable.

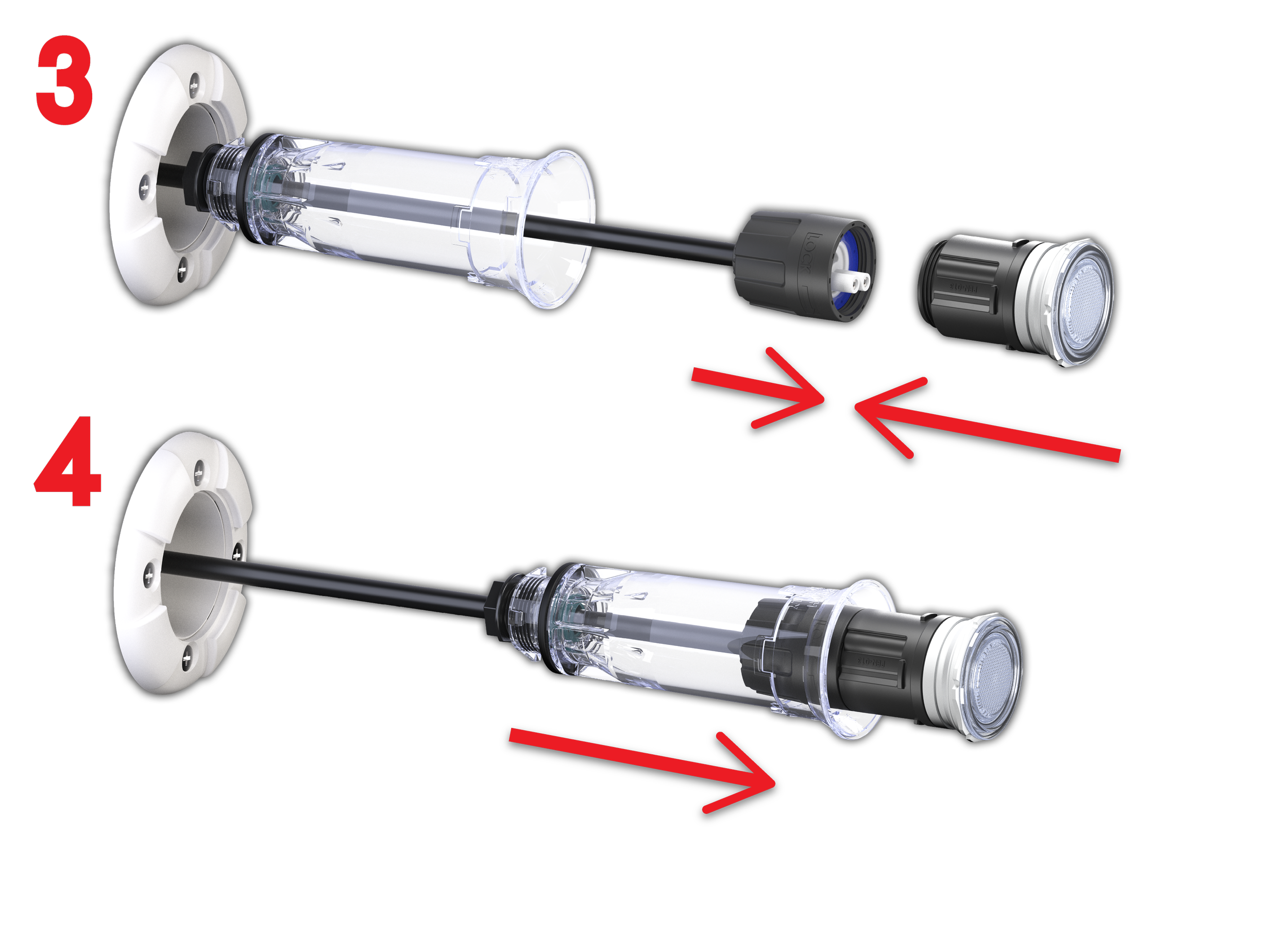

3. Attach the Light Assembly to the Plug.
4. Feed the Globrite adapter up the cable and over the Light Assembly.

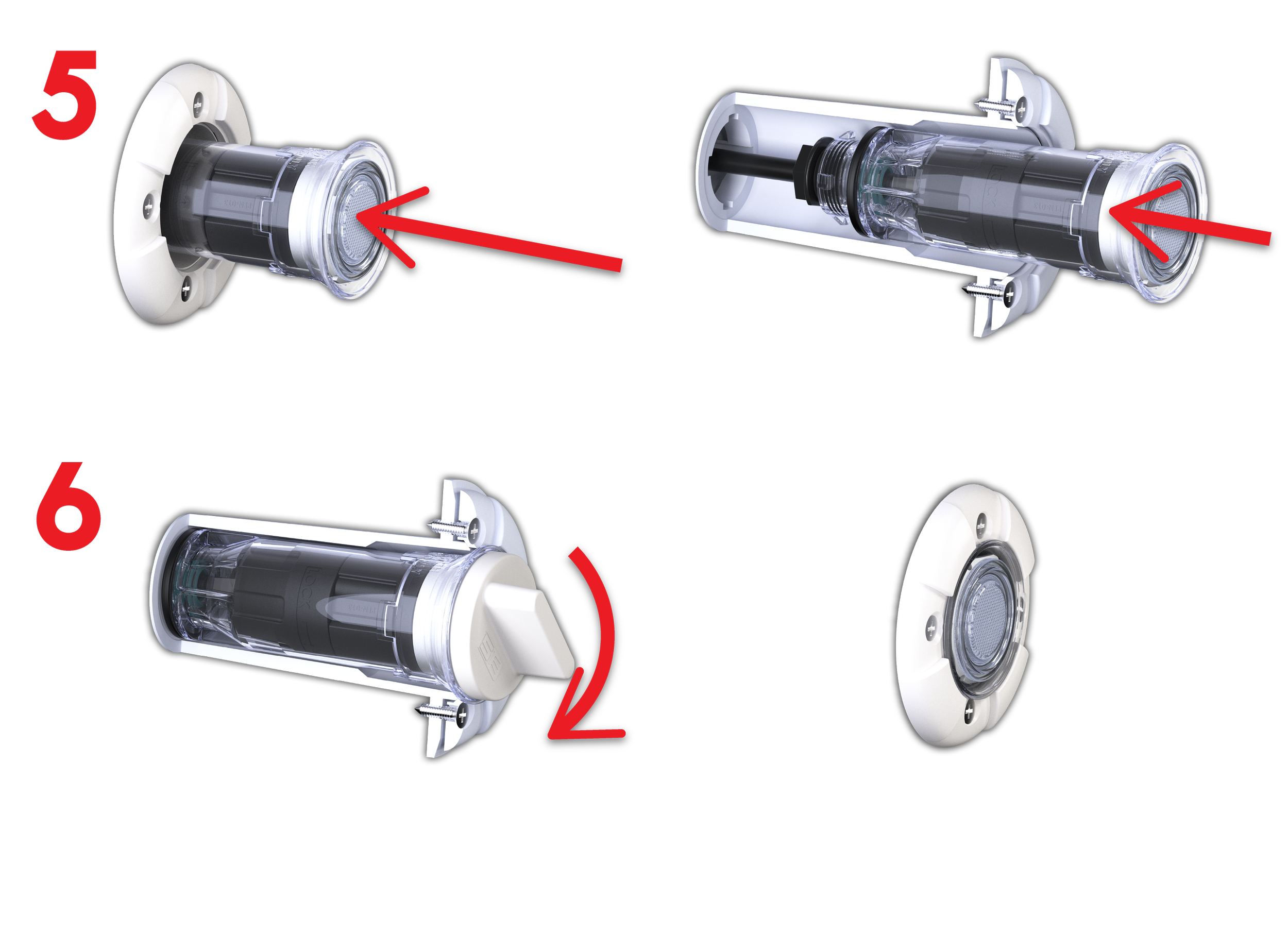

5. push the Light & Globrite adapter assembly into the existing niche/fitting, drawing cable through the conduit at the same time.
6. Using the included Locking Tool, twist the assembly 45 degrees clockwise to lock and seal the light in place.
COMPATIBLE WITH
ALL
GLOBRITE NICHES
Fits in all GloBrite niche variants

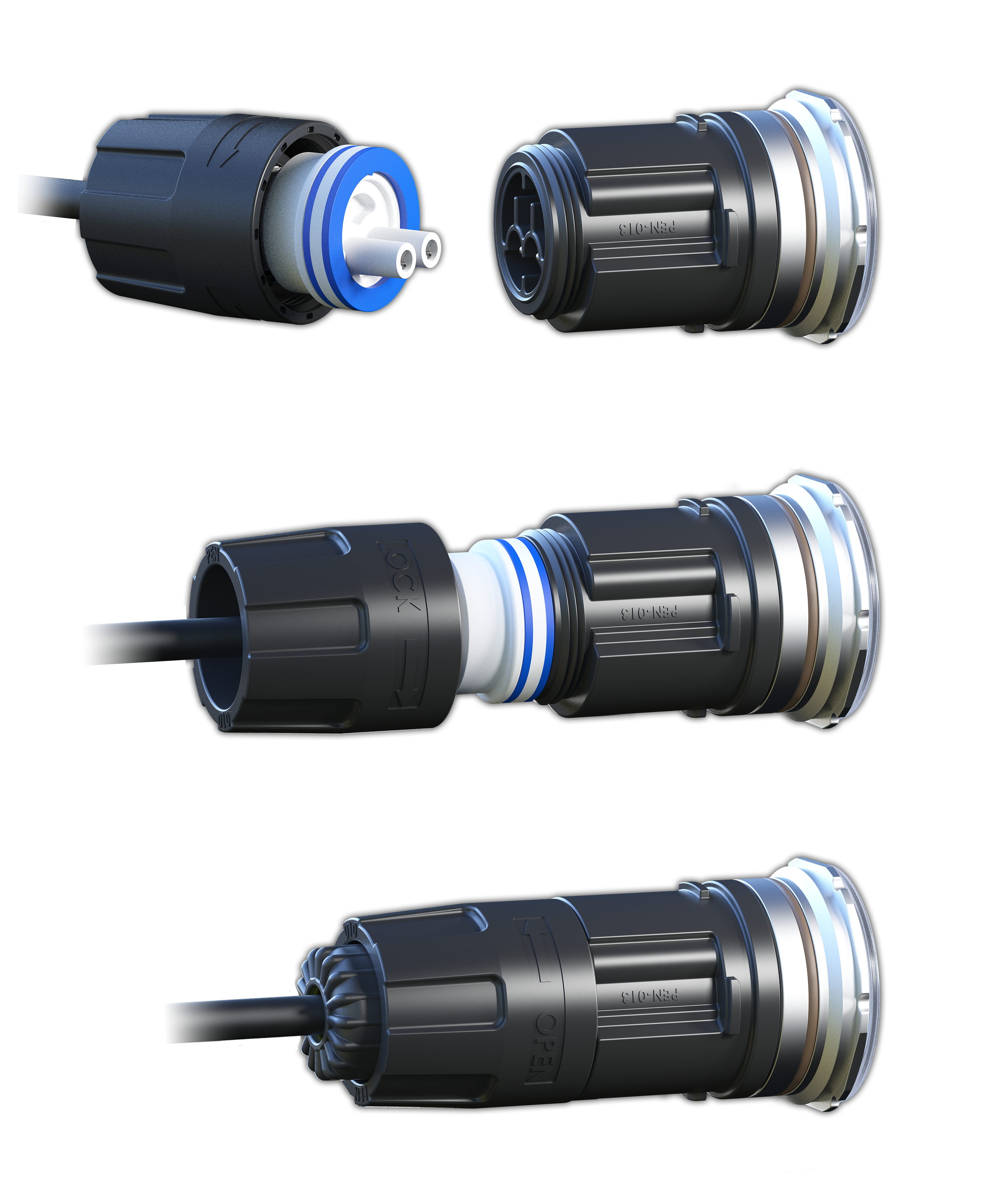

QUICK CONNECT
PLUG
Servicing Made Easy
Easily Remove the Retro T1G light with the Quick Connect Plug
EFFORTLESS
INSTALL

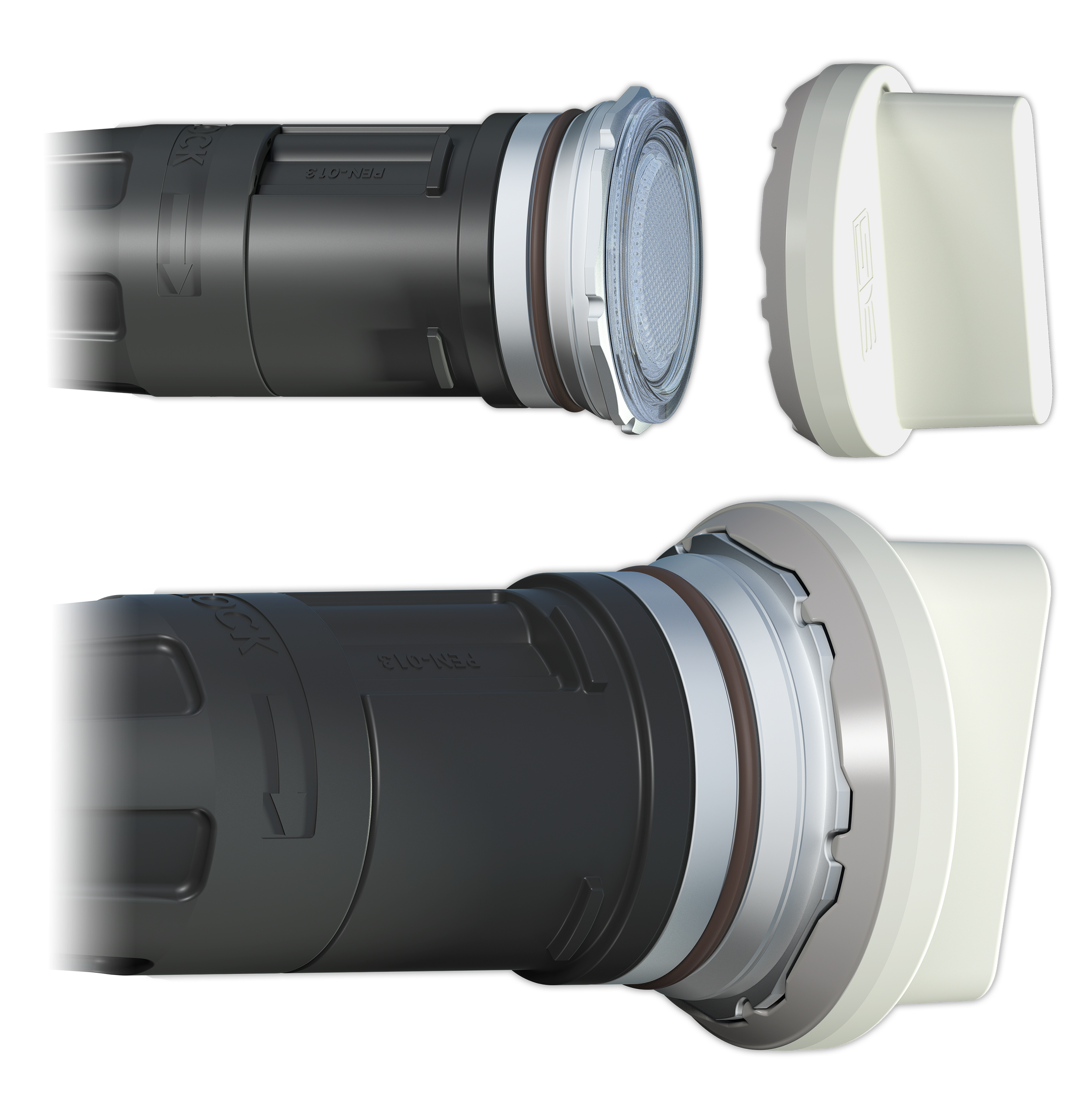

Light Installation Tool
Effortlessly install and maintain your Retro T1G light with precision! Our innovative design allows you to seamlessly lock and secure the light into the existing fitting, ensuring a flawless installation. When service is needed, the specially engineered tool—included with every Retro T1 product—makes removal swift and hassle-free. Experience convenience and reliability, redefined.
TECHNICAL SPECIFICATIONS
| Light Source | Ceramic Light Engine (LED) |
| Available Colors | MULTI PLUS |
| MULTI PLUS Compatibility | Wall Switch Operation |
| Spa Electrics LiT YARD 2 Outdoor Lighting Controller | |
| Hayward Omnilogic | |
| Pentair IntelliTouch® / EasyTouch® | |
| Zodiac/Jandy RS (REV R - Current) | |
| Zodiac TRi® | |
| IP Rating | IPX8 |
| Installation Types | Pentair Globrite Niche (Concrete, Fiberglass, Vinyl) |
| Voltage | 10.5 - 13v AC |
| Wattage | 8 Watts |
| Ambient Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Warranty | 3 Year Manufacturers Warranty |
| Pool Controllers | Compatible with major brand pool controllers |
| Transformer | Requires 12V AC UL listed transformer. We recommend LVX Series Transformers |
