Universal 10” Replacement Pool Light
Designed to retro-fit all major brand 10” niches and pool controllers
UNIVERSAL MOUNTING
Retro-Fit 10” Niches In Any Condition
Multiple Installation Options
With The Retro R10 Universal Adaptor

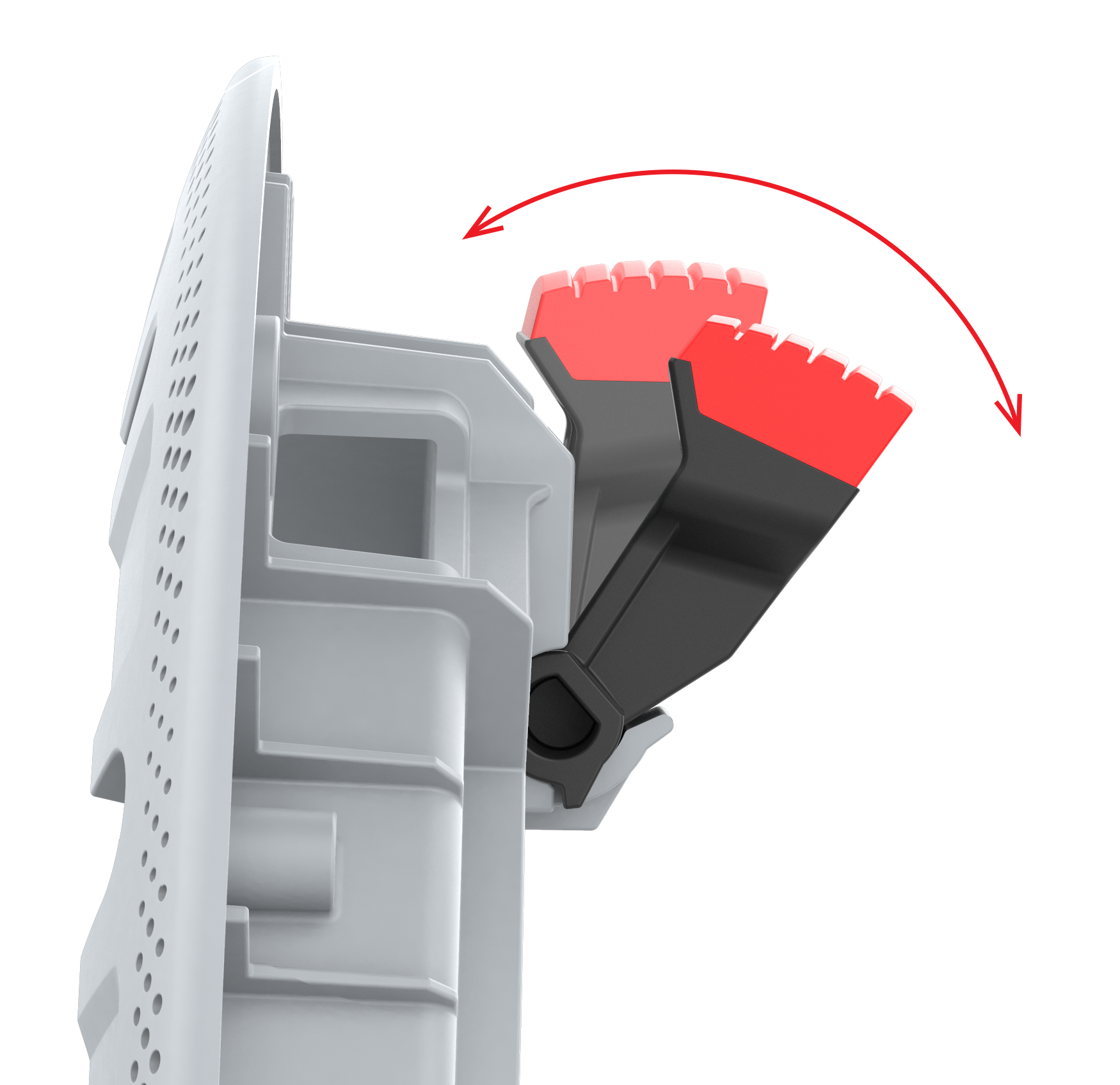

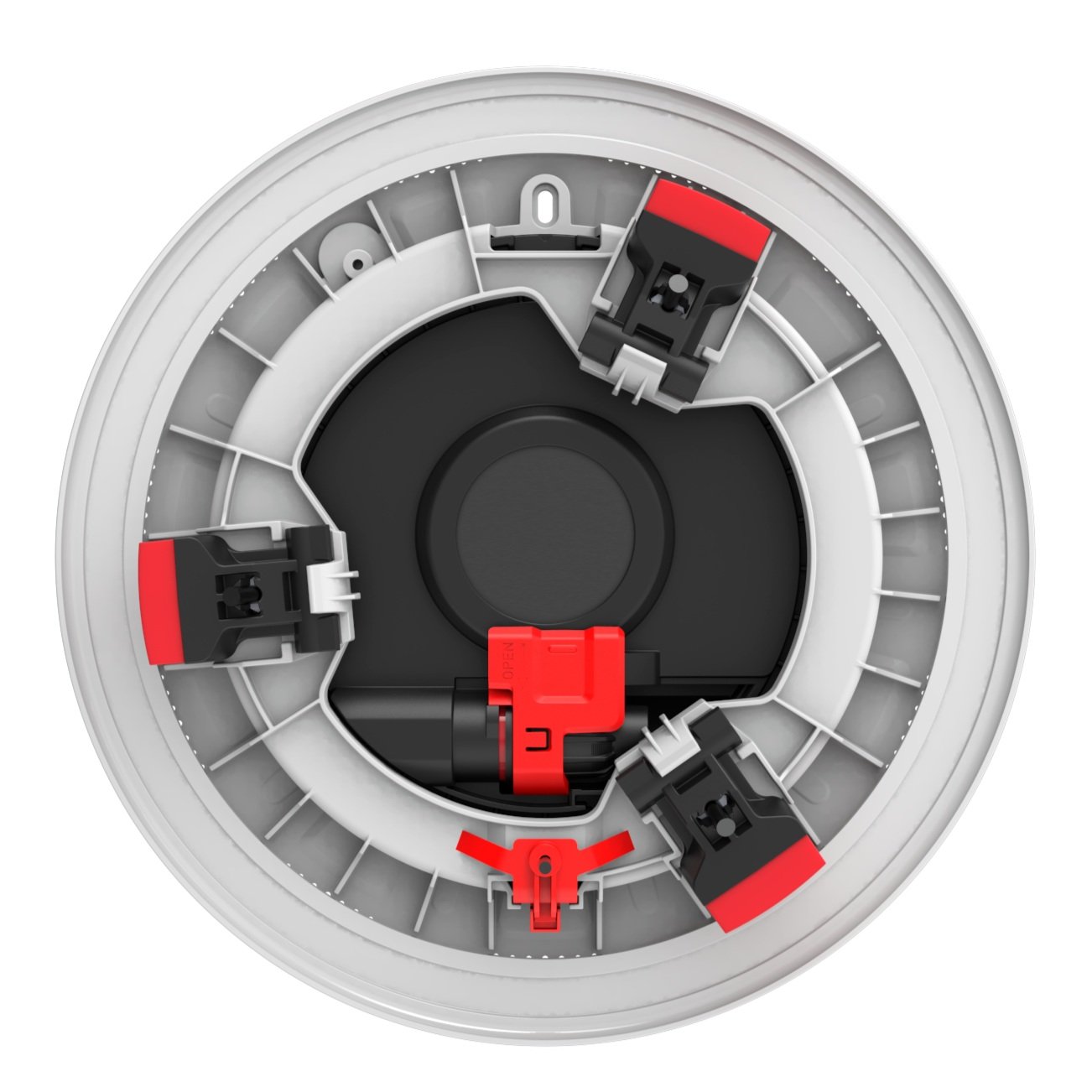

CAM-LOCK Installation
There’s no need for expensive repair work as Retro R10’s Universal Adaptor doesn’t rely on intact niche mounting hooks or screws for successful installation. The patented CAM-LOCKS grip the niche wall as they’re fitted, pulling the Retro R10 Light and existing niche together for a secure, even fit.

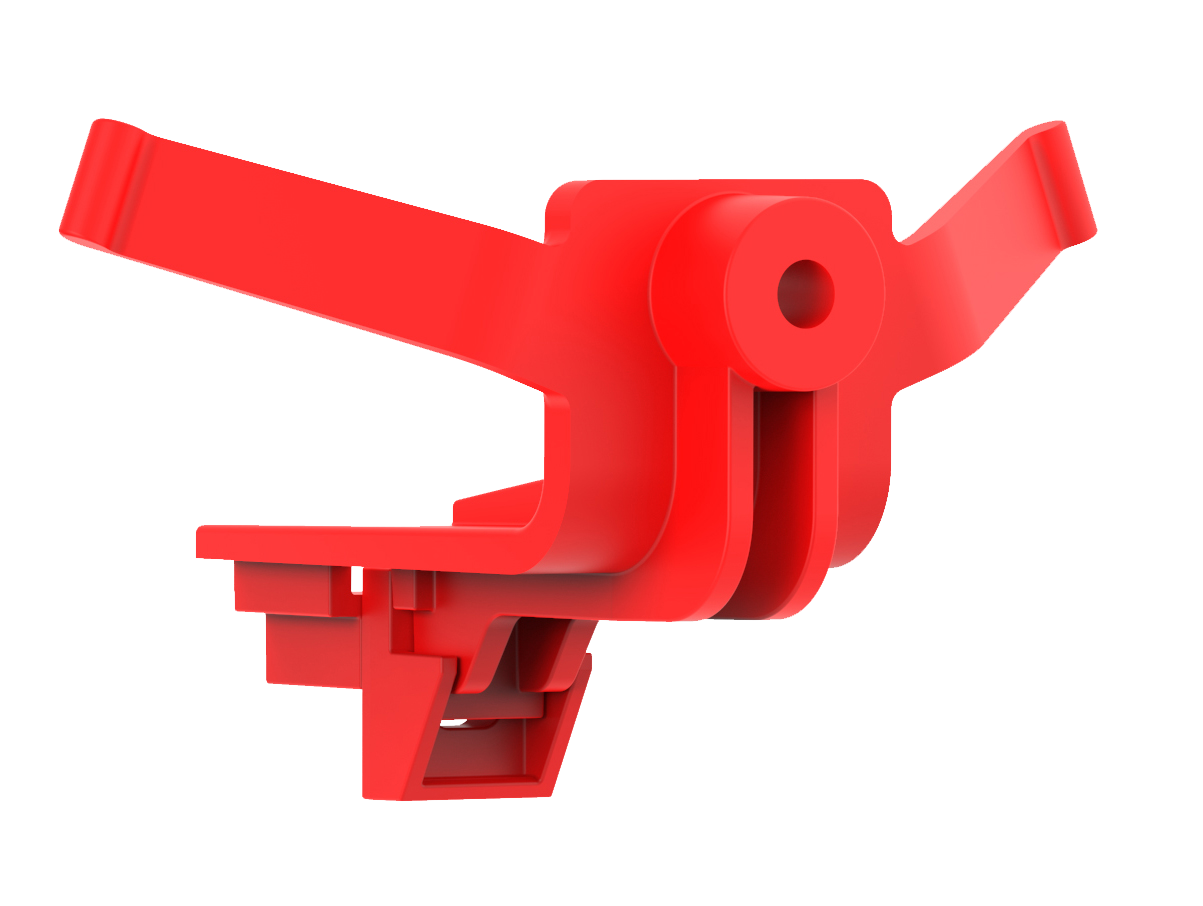

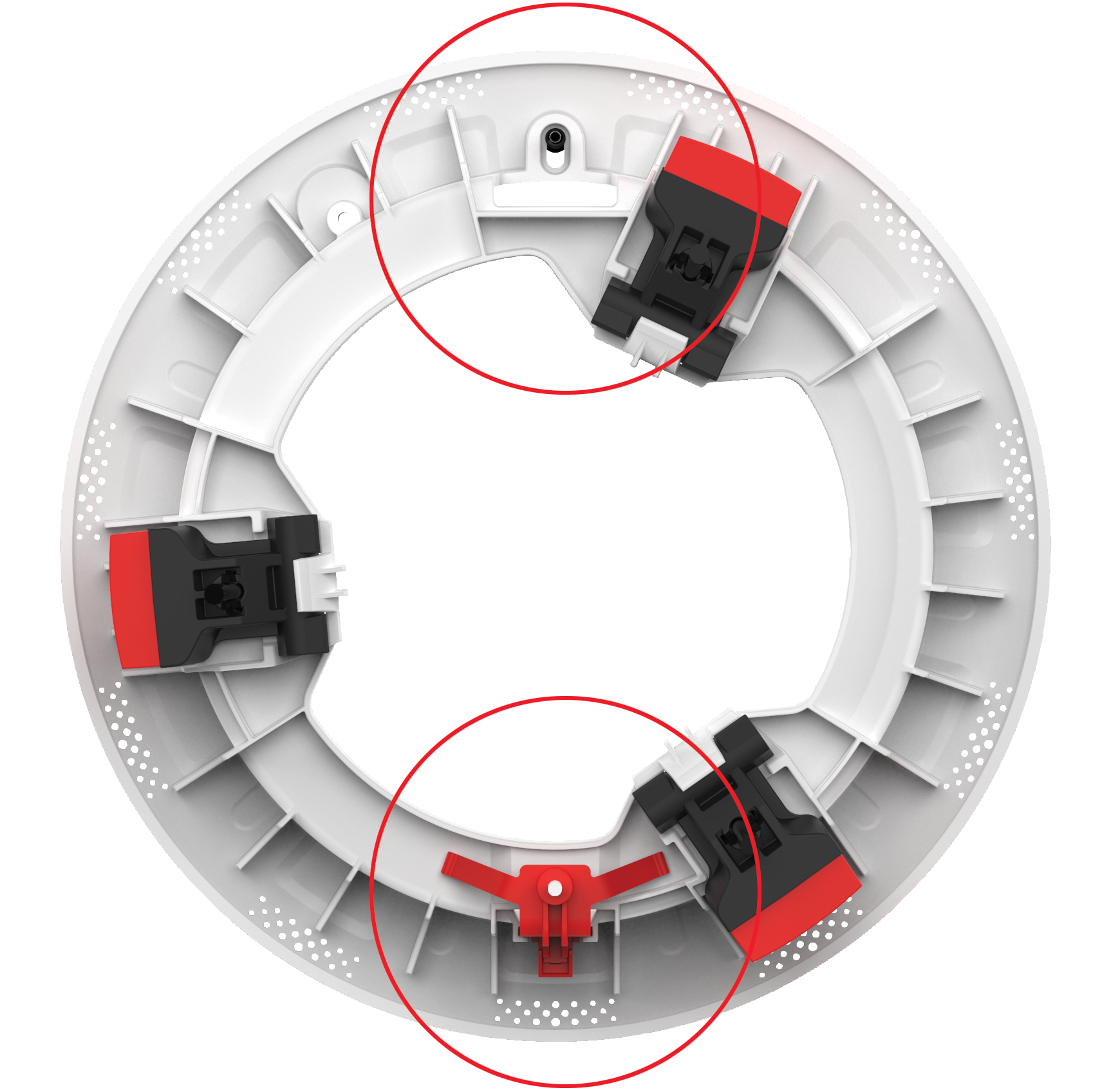

Standard Installation
The Retro R10 also supports standard installation methods with its variable hook and screw system. The Hook Tab adjusts without the need for extra spacers or washers to suit all major brand niche tabs.

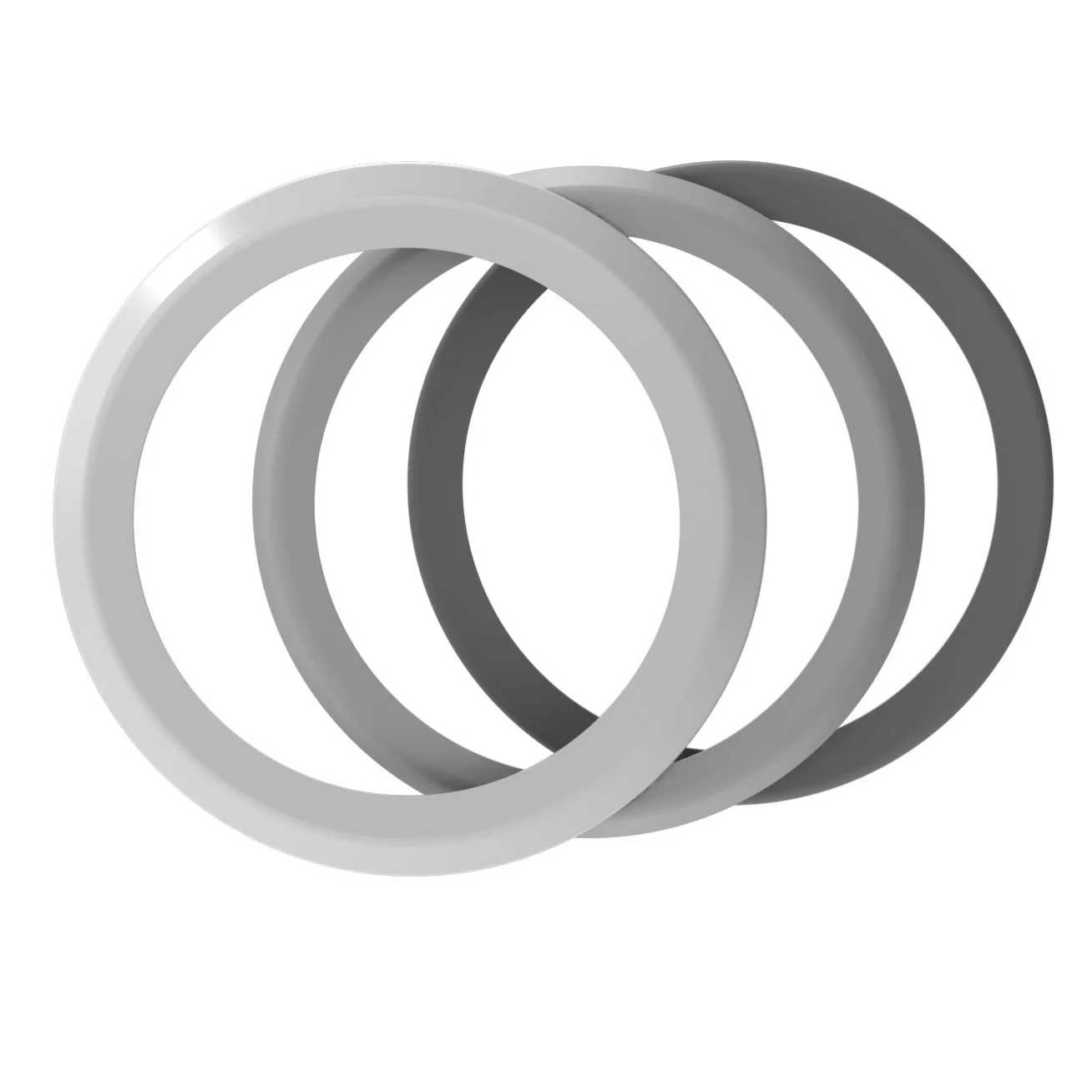

Vinyl Pool Installation
The Retro R10 is also compatible with major Vinyl Pool Light Niches.
Using the additional Vinyl Trim Kit (ordered separately), the R10 light can install seamlessly into vinyl pools using either the CAM-LOCK or standard installation methods.

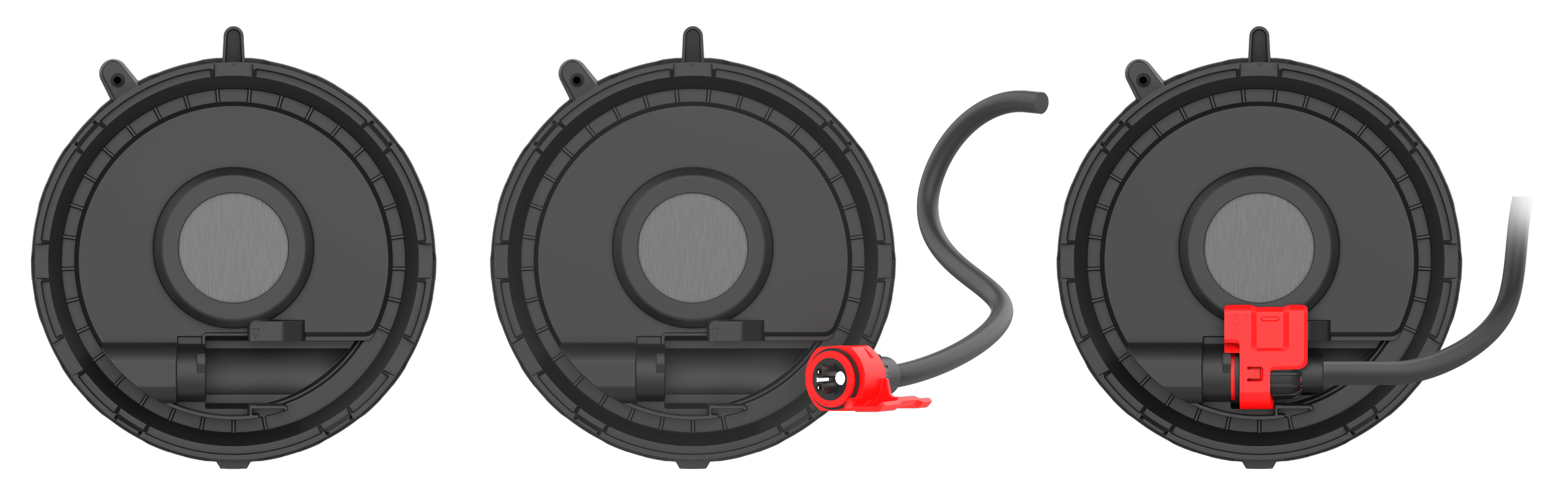

QUICK CONNECT PLUG
No More Pulling Cables During Installation Or Servicing
Fast And Reliable Installation
With Retro R10’S Quick Connect Plug
Retro-fitting a Pool light should take minutes, not hours. With the Retro Series R10 you can say goodbye to pulling cables through conduit forever! The Retro R10 makes retro-fit installation a quick & simple process. Its UL Listed Quick Connect Plug system attaches directly to the existing cable in the niche, saving time, money and allowing for light replacement when cables cannot be removed.
Extra Safe Low Voltage 12VAC
The UL Listed Quick Connect Plug power offers safe low voltage connection for all pool users as well as for future servicing. Simply install a transformer for conversion.
BUILT TO LAST
‘Super Cool’ Technology For Maximum Performance
Engineered For Durability And Brightness
Advanced Cooling & Performance
High performance LED Lighting requires advanced cooling systems & Spa Electrics has been a pioneer in underwater heat sink technology since the introduction of LED lighting systems. The Retro R10’s external heat sink design pushes the boundaries of thermal technology to harness the full cooling potential of the pool. Combine this with Spa Electrics award winning Ceramic Light Engine technology makes the Retro R10 light the brightest on the market.
Brighter for Longer
Brightness is only good if it lasts; so with durability as our driver, our team have combined quality components, innovative circuit design and German engineered LED’s, to deliver not only the industry’s highest output light, but one that’s built to keep performing, year after year.
Technical Specifcations
| Light Source | Ceramic Light Engine (LED) |
| LED Colors | White: 3000k Warm or 4000k Daylight, 3200 lumen |
| Blue 1000 lumen | |
| MULTI PLUS RGB+W 3200 lumen | |
| MULTI PLUS Compatibility | Wall Switch Operation and all major pool controller brands including: Pentair IntelliTouch®, Haward Omnilogic®, Aqualink® |
| Niche Compatibility | All major brand niches including: American®, Anthony®, CHD®, Hayward®, Hydrel®, Jandy®, PacFab®, Paragon®, Pentair®, Purex®, Sta-Rite®, Swimquip® |
| Cable Compatability | Up to 12AWG size |
| IP Rating | IPX8 |
| Installation Types | Concrete / Vinyl |
| Voltage | 10.5 to 13 v AC |
| Wattage | 45 watts |
| Ambient Operating Temperature | 41 °F to + 104 °F |
| Transformer | Requires 12V AC UL listed transformer. We recommend LVX Series Transformers |
| Warranty | 3 Year Manufacturers Warranty |
