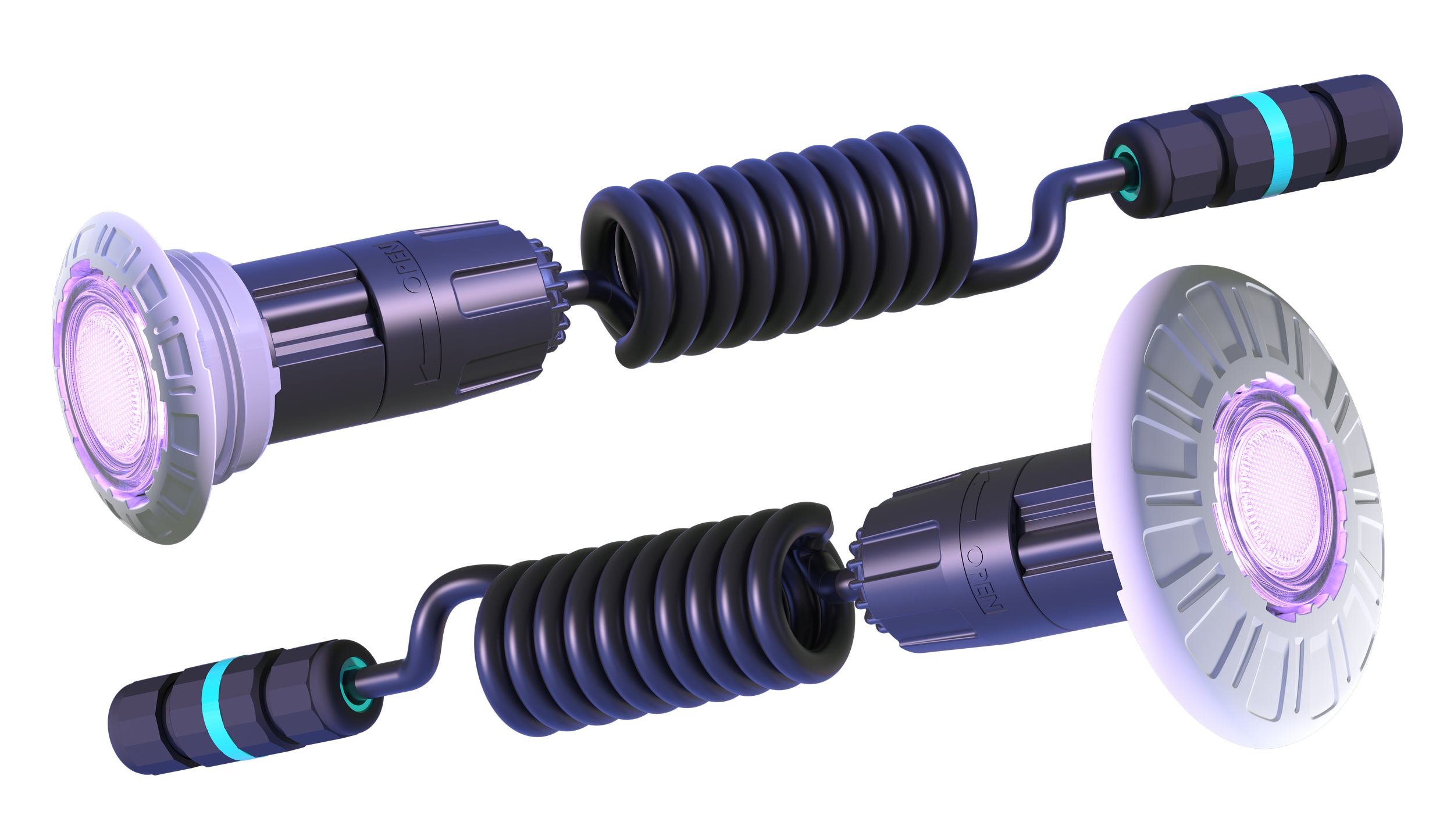

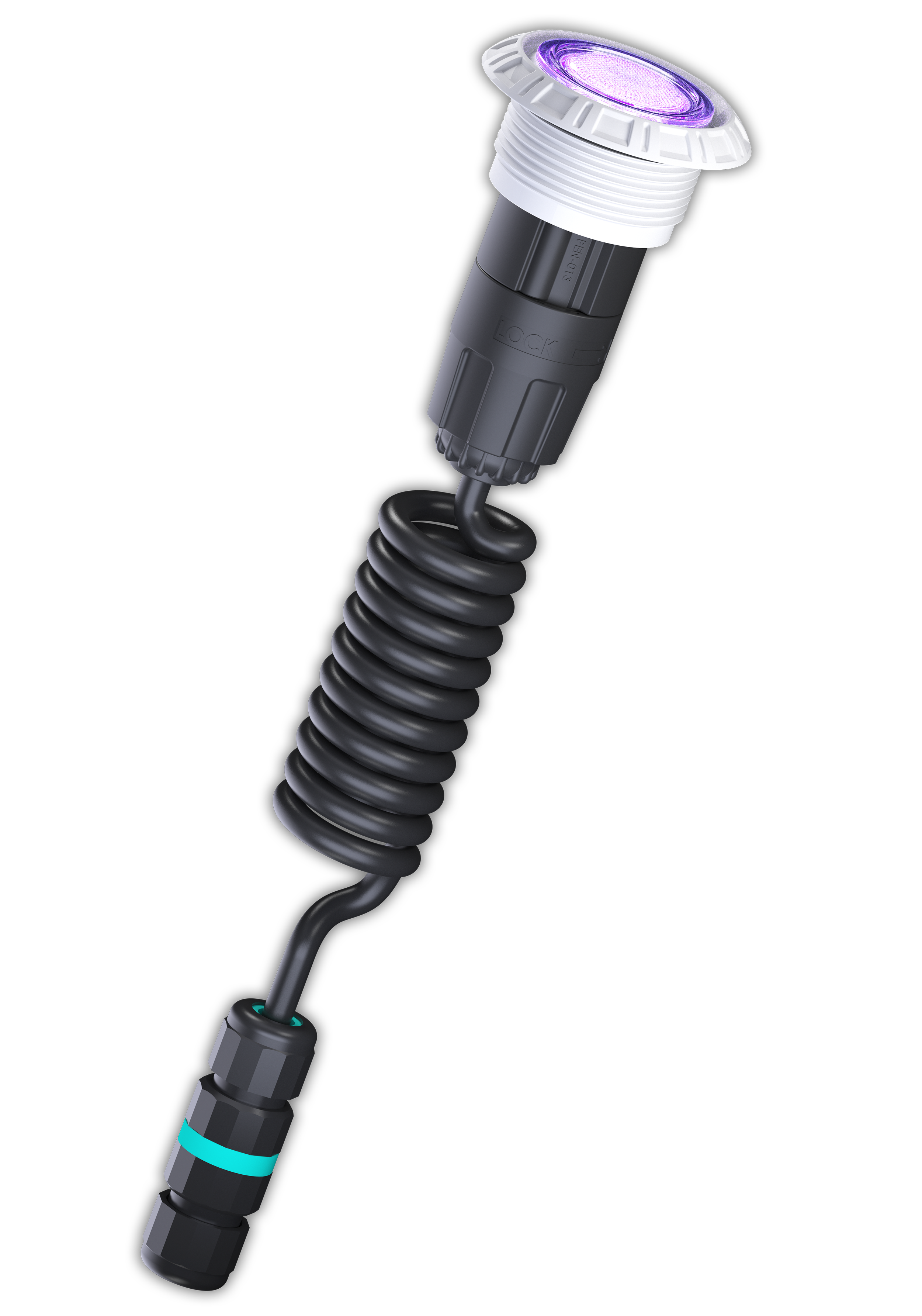

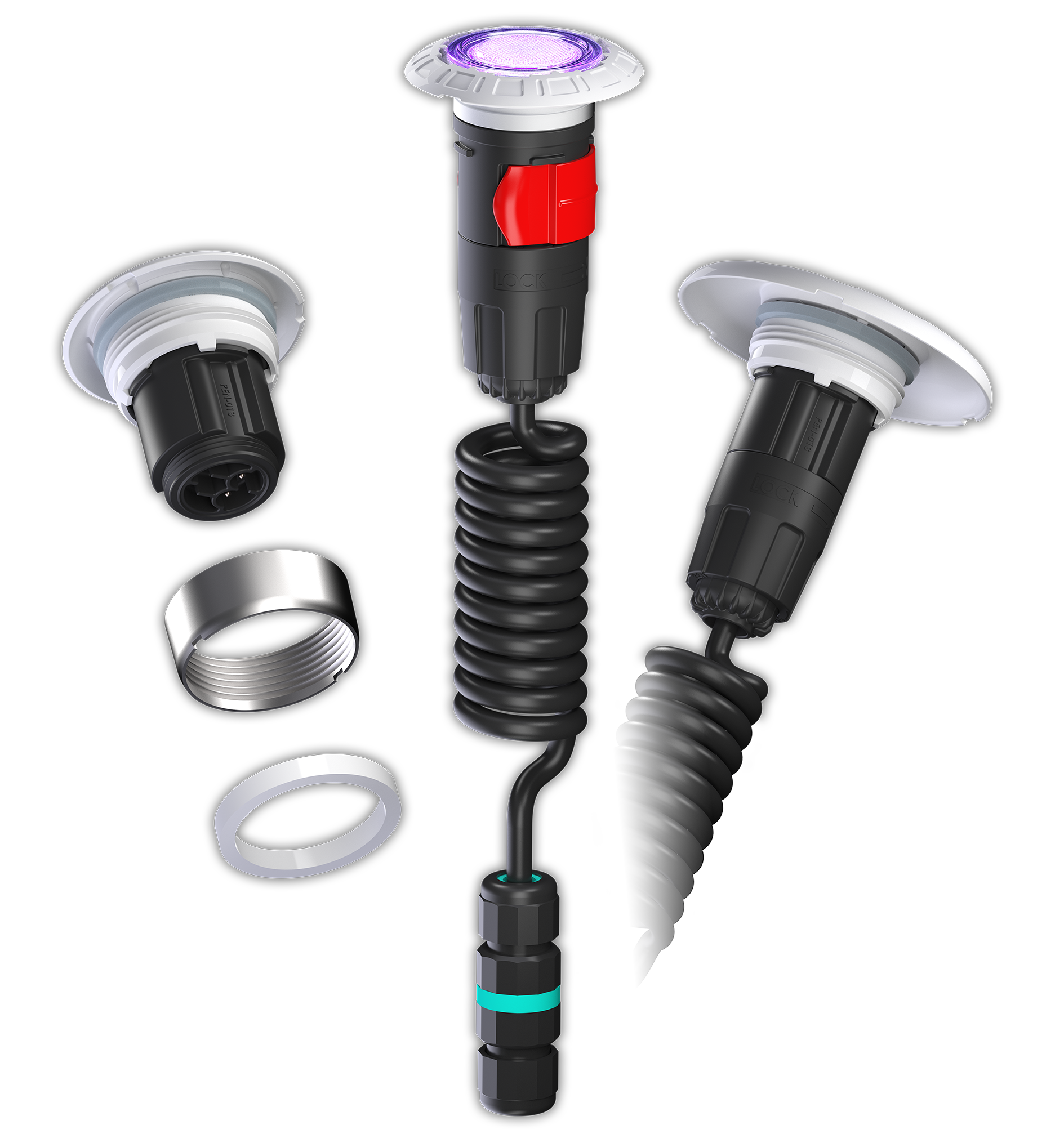

Universal 1.5” Replacement Pool Light
An innovative pencil light retro-fit solution that’s easy to install, long lasting & serviceable!

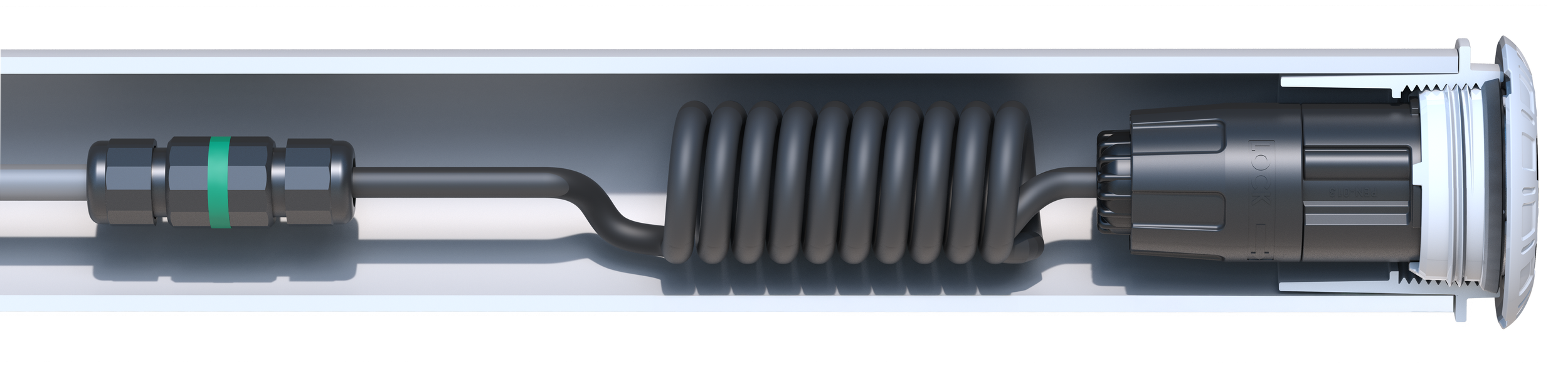

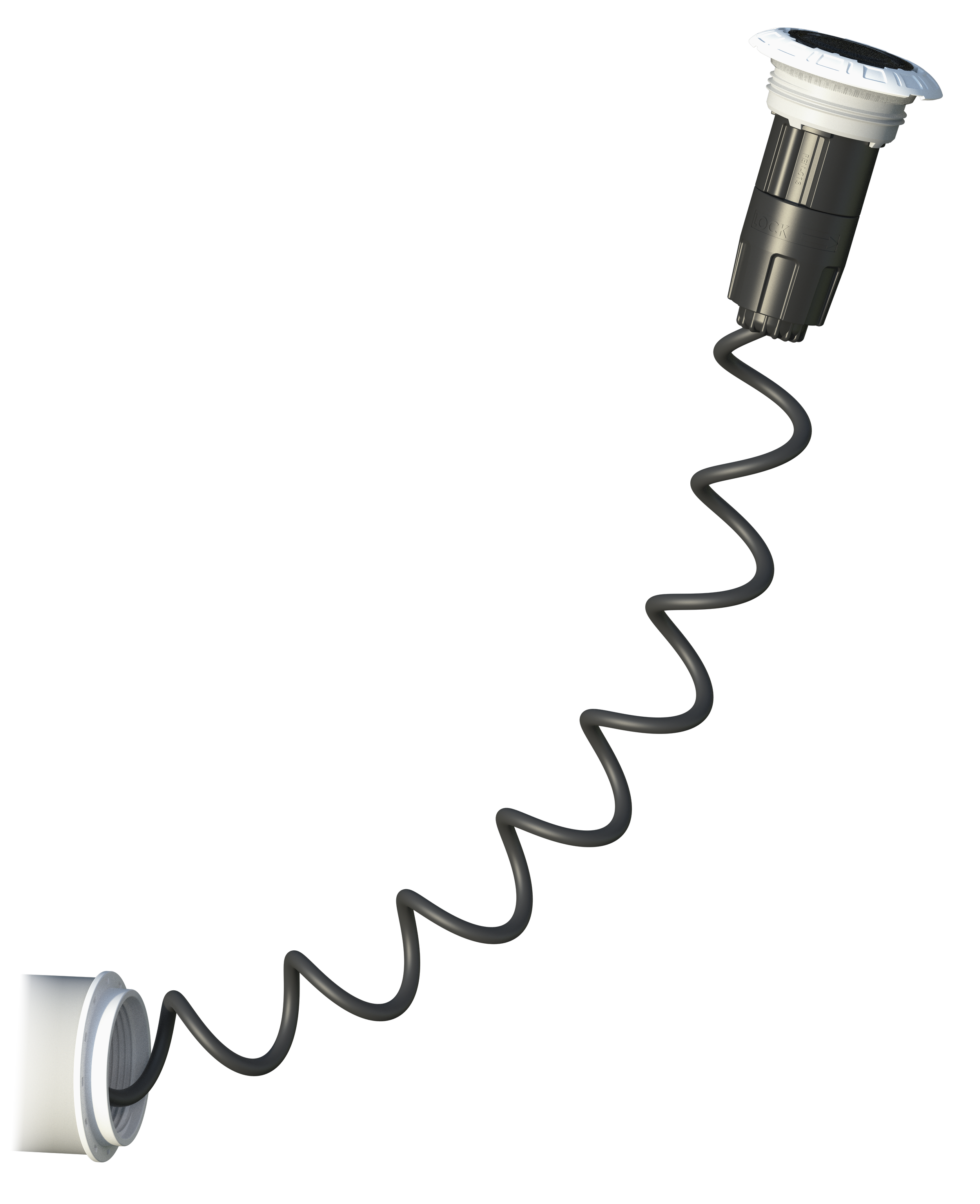

CURLY CABLE
All the cable storage you need,
now in a pipe
The Curly Cable design, paired with the UL Listed Quick-Connect Plug, allows the light to be taken out, above the water line, without the need to pull the cable through the conduit.

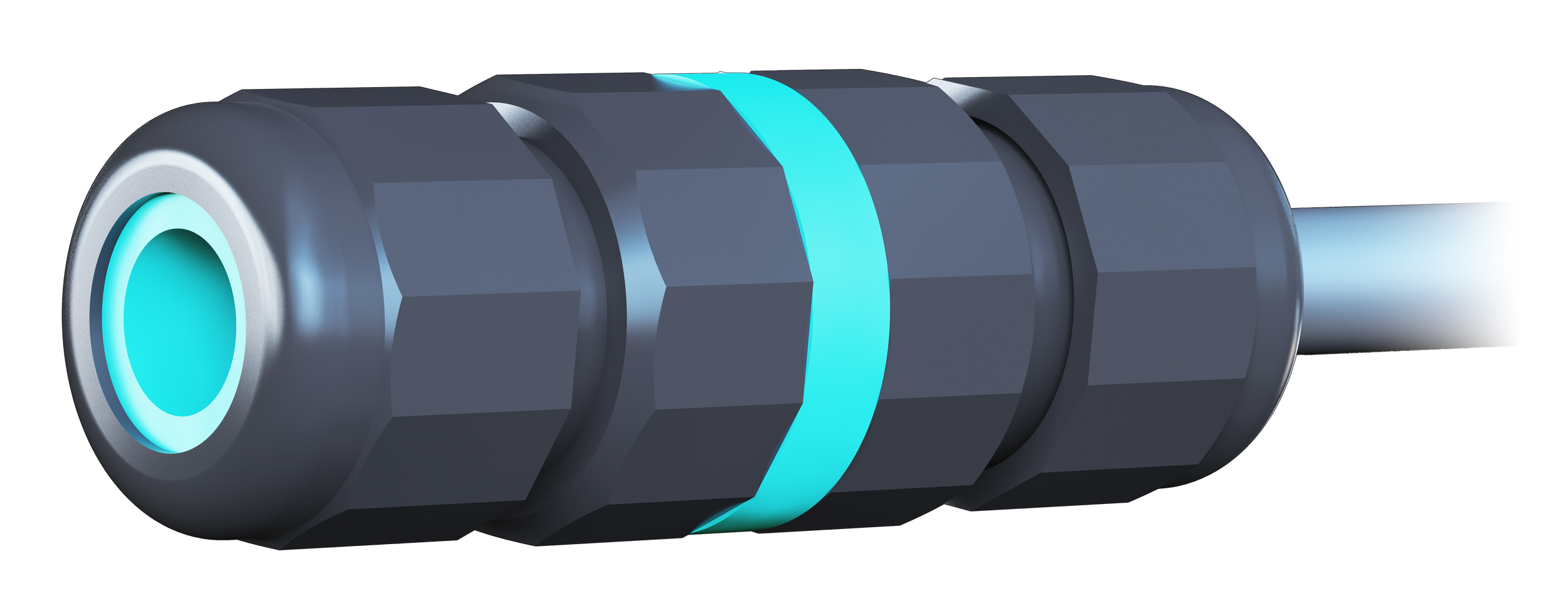

Cable Joiner Included
Easily wire the existing cable into the included Cable Joiner, making installation quick and simple.

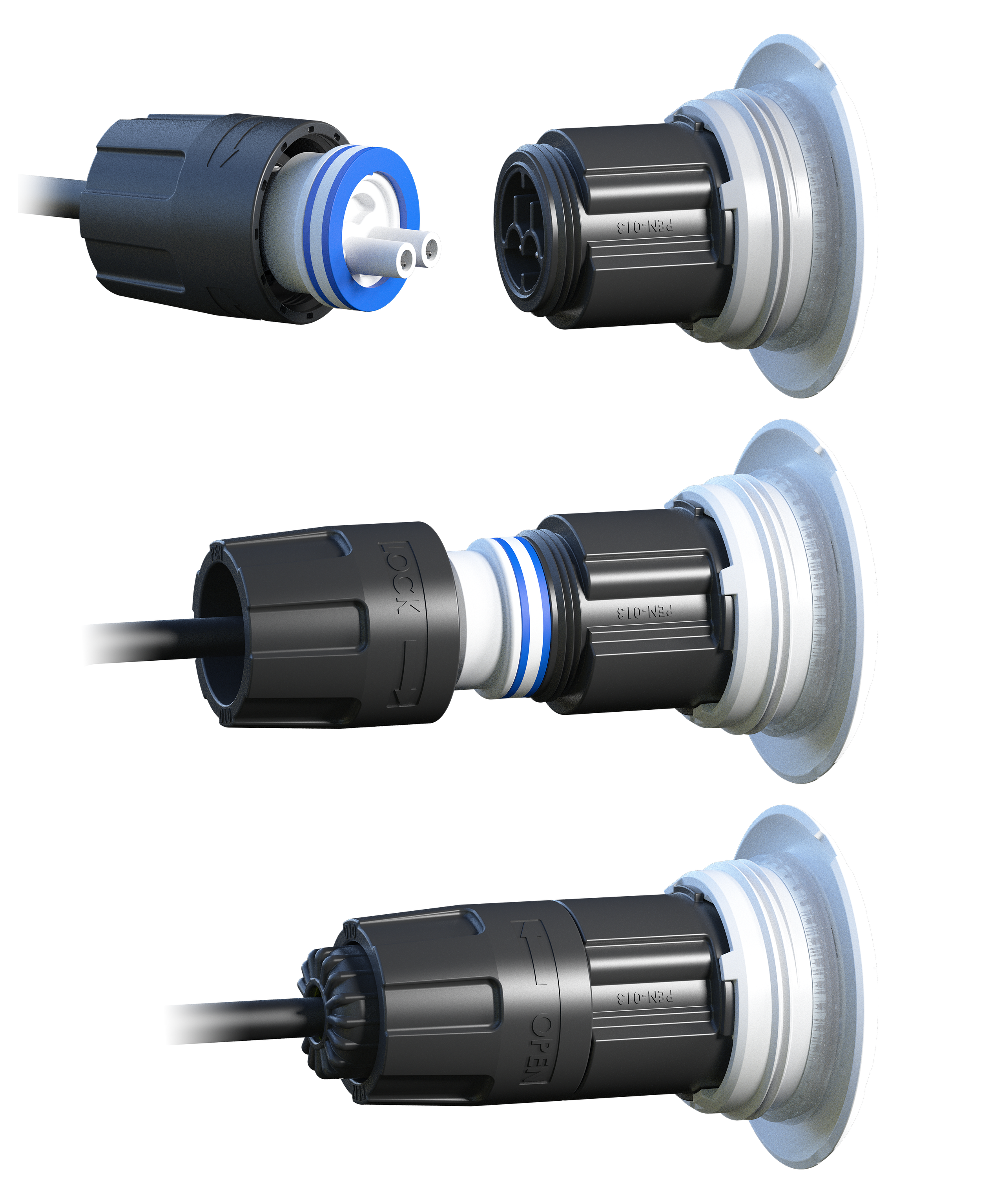

QUICK CONNECT PLUG
Servicing Made Easy
Easily Remove the Retro T1 light with the Quick Connect Plug
EFFORTLESS INSTALL
Light Installation Tool
Effortlessly install and maintain your Retro T1 light with precision! Our innovative design allows you to seamlessly thread and secure the light into the bulkhead fitting, ensuring a flawless installation. When service is needed, the specially engineered tool—included with every Retro T1 product—makes removal swift and hassle-free. Experience convenience and reliability, redefined.

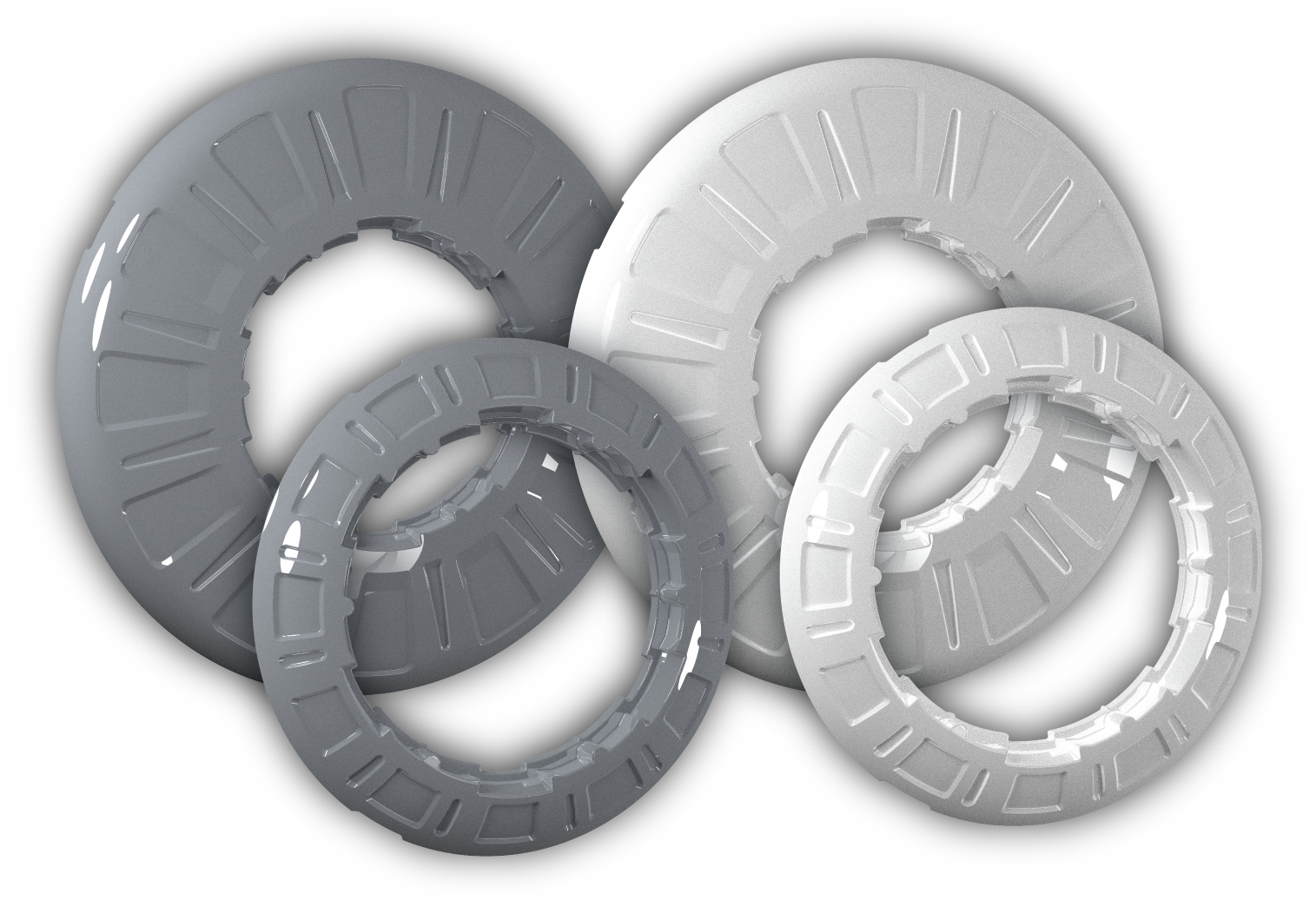

Interchangeable rims
Flexible Applications
Both small Concrete and Large Vinyl or Fiberglass rim sizes included in each retro kit and can be easily swapped to suit any requirement.
Elegant Design
Conceal the existing bulkhead/ threaded fitting with the included Rims in your choice of color.
TECHNICAL SPECIFICATIONS
| Light Source | Ceramic Light Engine (LED) |
| Available Colors | MULTI PLUS |
| MULTI PLUS Compatibility | Wall Switch Operation |
| Spa Electrics LiT YARD 2 Outdoor Lighting Controller | |
| Hayward Omnilogic | |
| Pentair IntelliTouch® / EasyTouch® | |
| Zodiac/Jandy RS (REV R - Current) | |
| Zodiac TRi® | |
| IP Rating | IPX8 |
| Installation Types | Concrete, Fiberglass & Vinyl |
| Voltage | 10.5 - 13v AC |
| Wattage | 8 Watts |
| Ambient Operating Temperature | 41 °F to +104 °F |
| Warranty | 3 Year Manufacturers Warranty |
| Pool Controllers | Compatible with major brand pool controllers |
| Transformer | Requires 12V AC UL listed transformer. We recommend LVX Series Transformers |
